SPECIFICATIONS

Application: Desktop,Laptop,Server,Workstation,Mining

Back I/O Ports: 1x RJ45

Brand Name: TFDP

Chipset: c612

Chipset Manufacturer: Intel

Choice: yes

Hign-concerned Chemical: None

Maximum Ram Capacity: 256GB

Number Of Memory Slots: 8

Number of M.2: 1

Number of PCI: 0

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI - E 2.0

Package: Yes

Ports: SATA

Processor compatibility: Intel Xeon E Series

RAID Supported: No

Socket Type: LGA 2011-3

Special Features: None

Storage Interface Type: SATA,M.2 (NVMe)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Usage Scenario: Enthusiast & Overclocking,Gaming,Office,DESIGN,Mining

With CPU: No

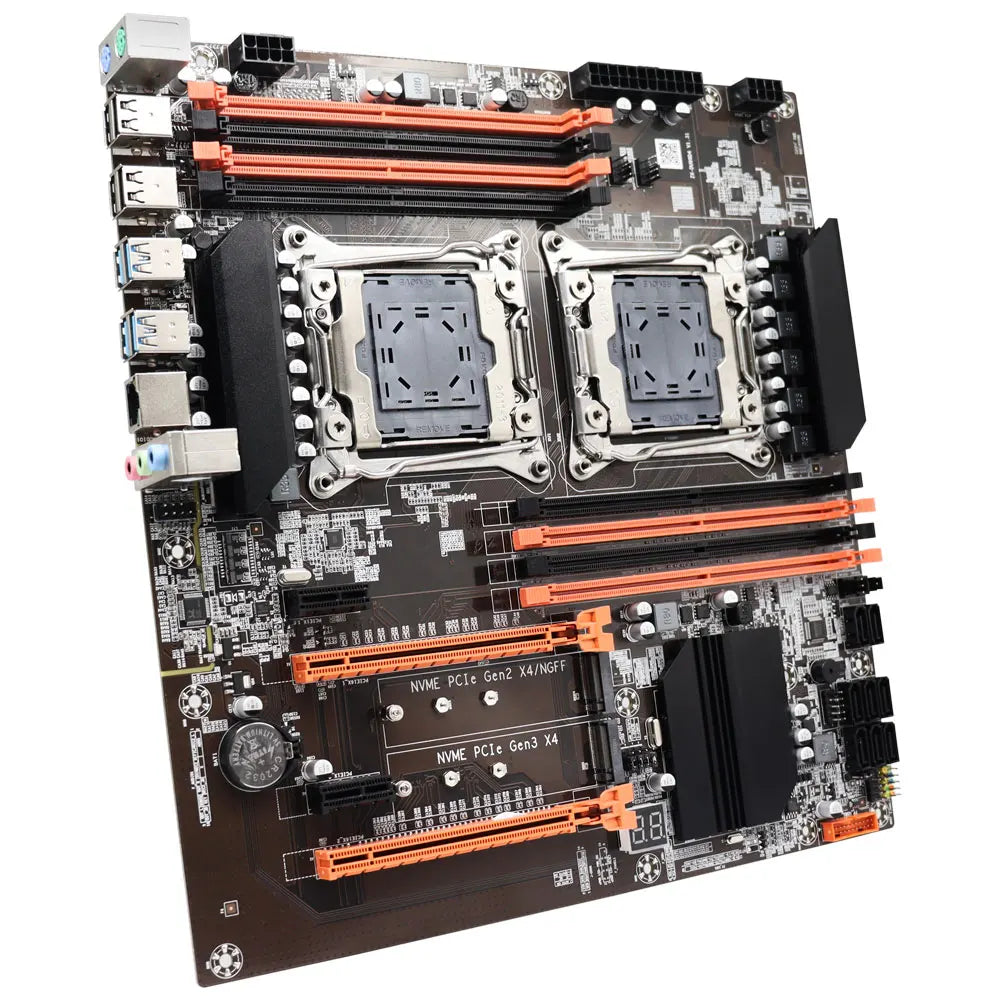

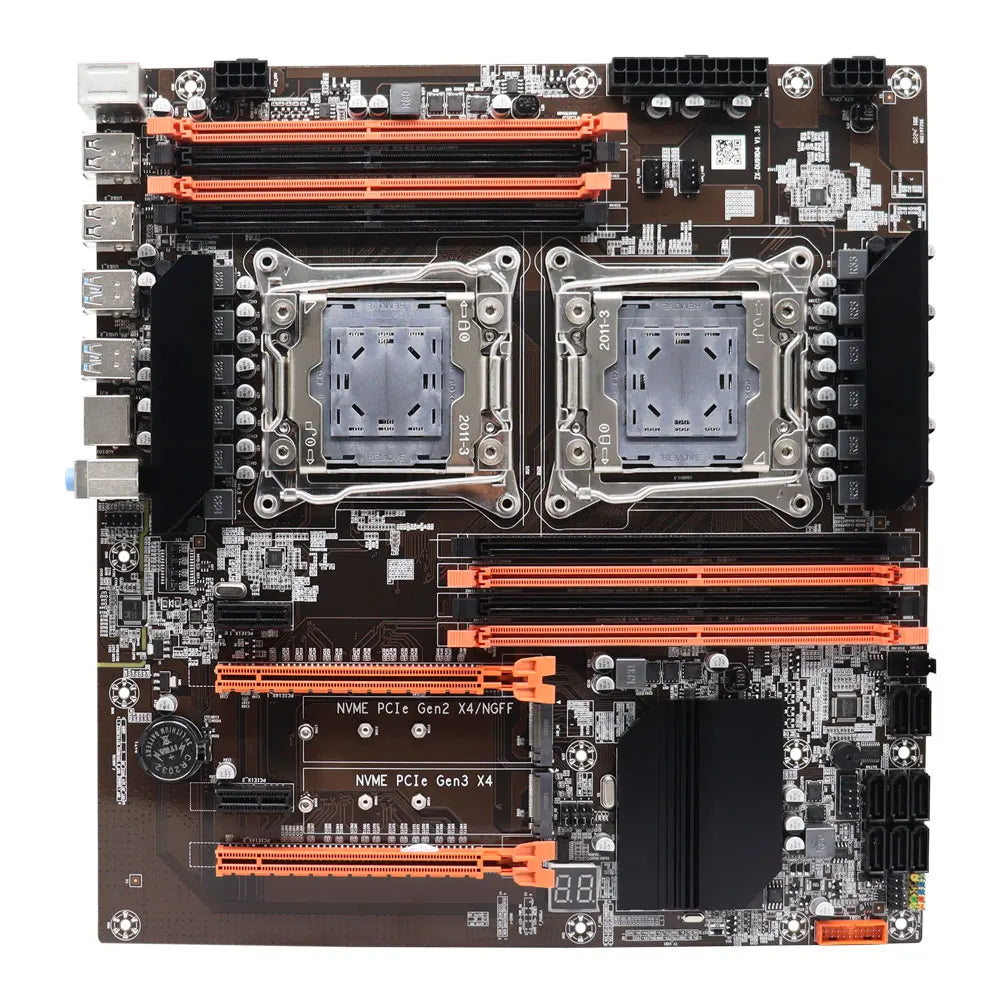

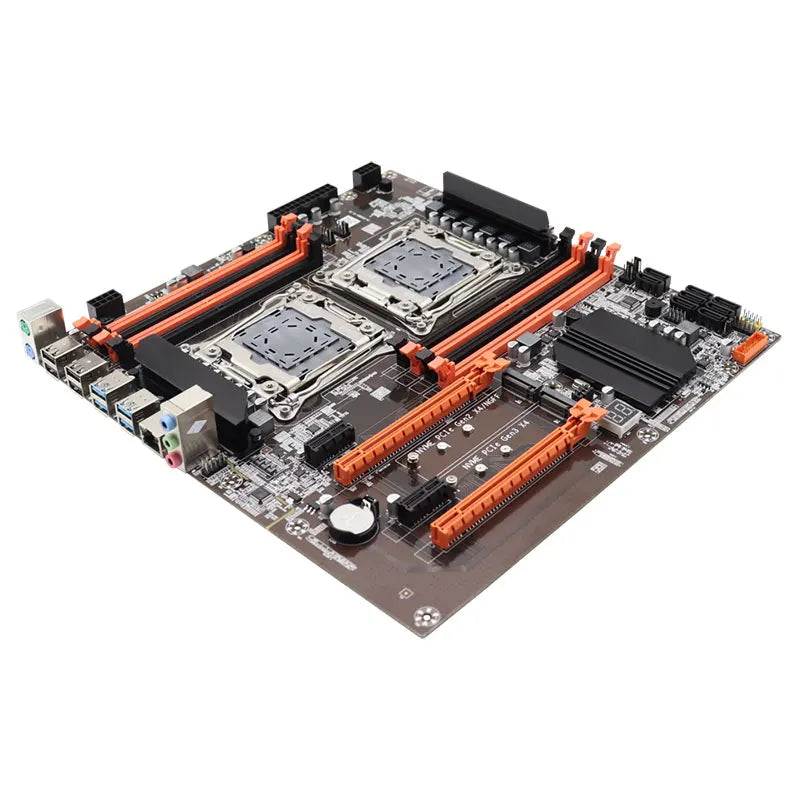

X99 Dual CPU Motherboard LGA 2011 v3 E-ATX USB3.0 SATA3 With Dual Xeon Processor With Dual M.2 Slot 8 DIMM DDR4 2011-3

Feature:

1. With rear 4 USB3.0, mainboard's gigabit network card keeps high-speed stable connection.

2. Supports four generations of DDR4, mainboard is with eight memory slots, supports ordinary memory and ECC server memory.

3. And NVME PCIE X4 channel m.2 high-speed hard disk theoretical bandwidth can be up to 4GB / S.

4. Desktop motherboard installation is simple, which does not require particularly complicated operations.

5. After many inspections before leaving the factory, motherboard's quality is guaranteed, you can use it with confidence.

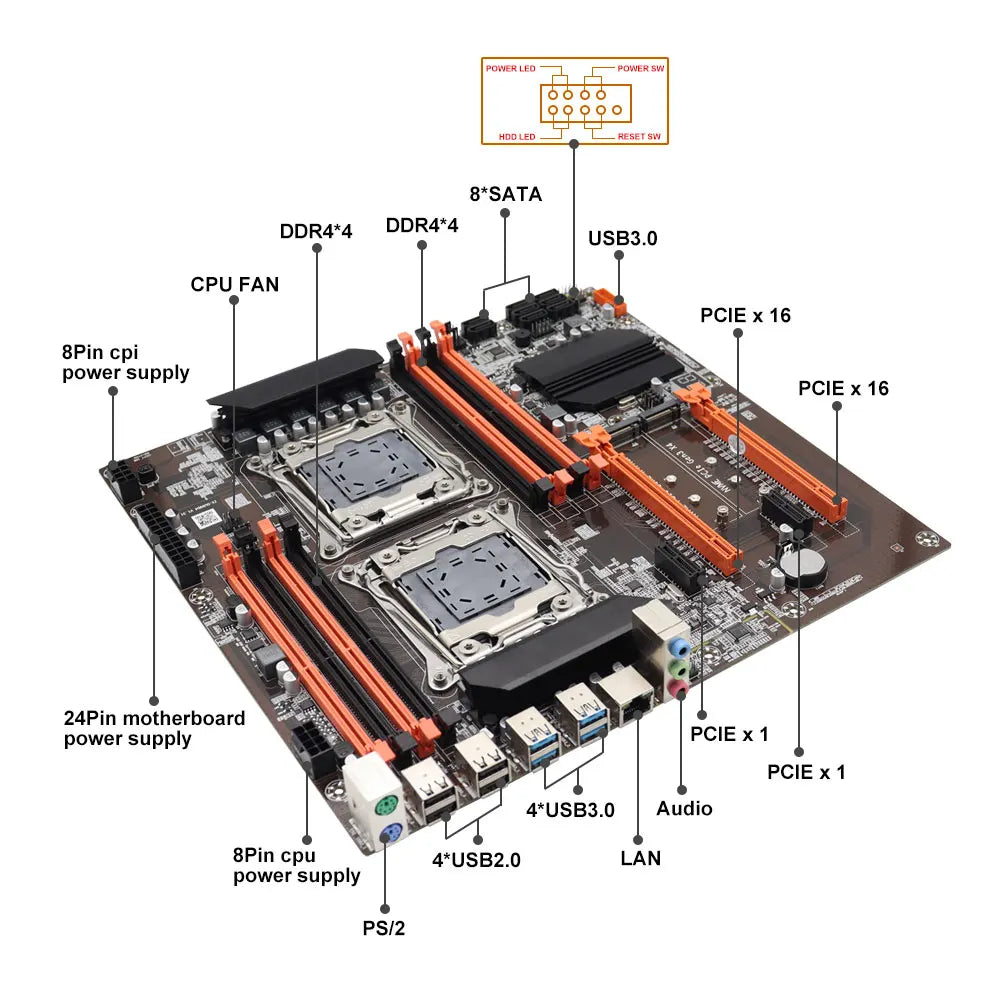

Specification:

Item Type: Motherboard

Model: X99

Sound Card: Chipset integrated chip sound card

Motherboard Chip: C612 Chip For Intel X99

Gigabit Network Card: Integrated RTL8111H Gigabit network card

Chip: Audio integrated 6-channel sound chip

CPU Socket: LGA 2011-3

Memory Size Memory Type: DDR4 3000/2666/2400 / 2133MHz

Memory Slot: 8 × DDR4 DIMM

Expansion Slot: PCI-E slot 2 × PCI-E X16

PCI-E slot 2 x PCI-E X1

2 x USB3.0 connectors (1 set)

2 x USB2.0 connection pin (1 set)

6 x SATA3.0 interface

1 x NVME M.2 interface

1 x SATA/NVME M.2 interface （change the jumper）

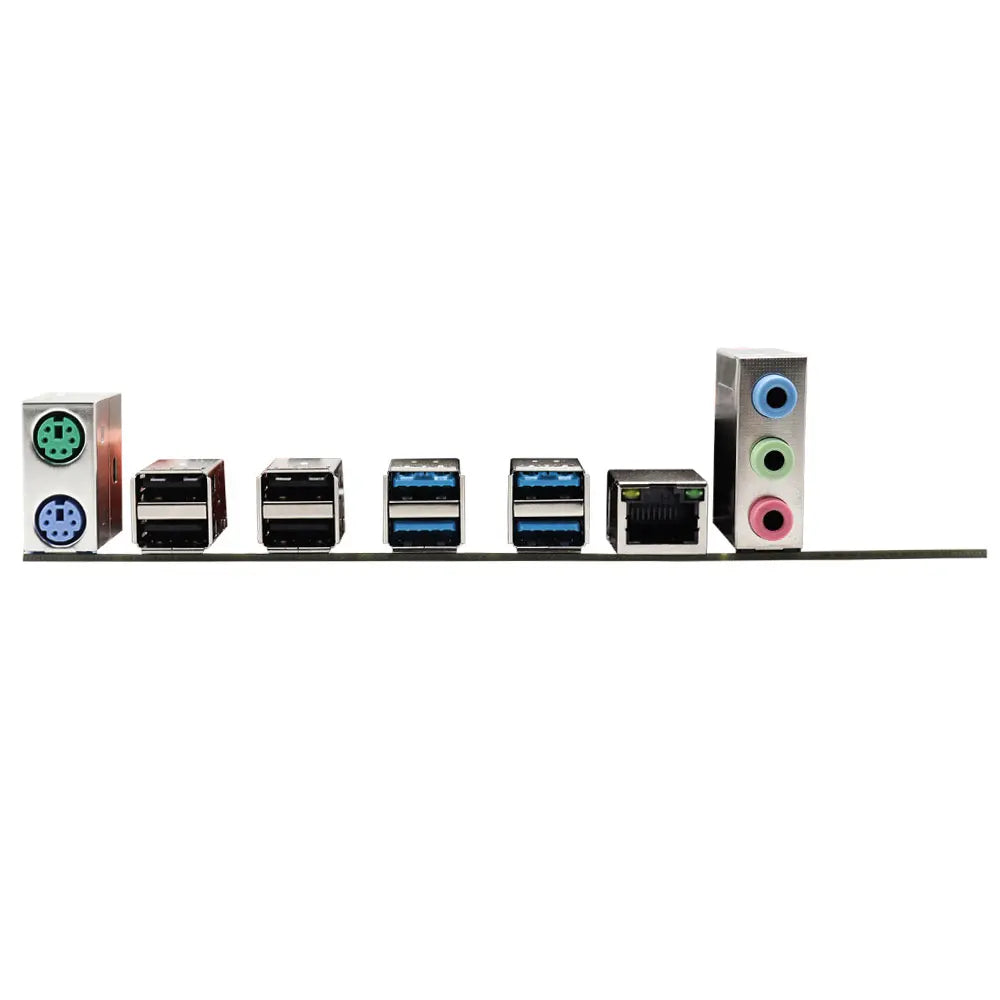

I / O PS / 2 keyboard or universal interface

1 × RJ45 network interface (Gigabit network card)

4 x USB 2.0 port

4 x USB 3.0 port

Battery Model: CR2032 (not included)

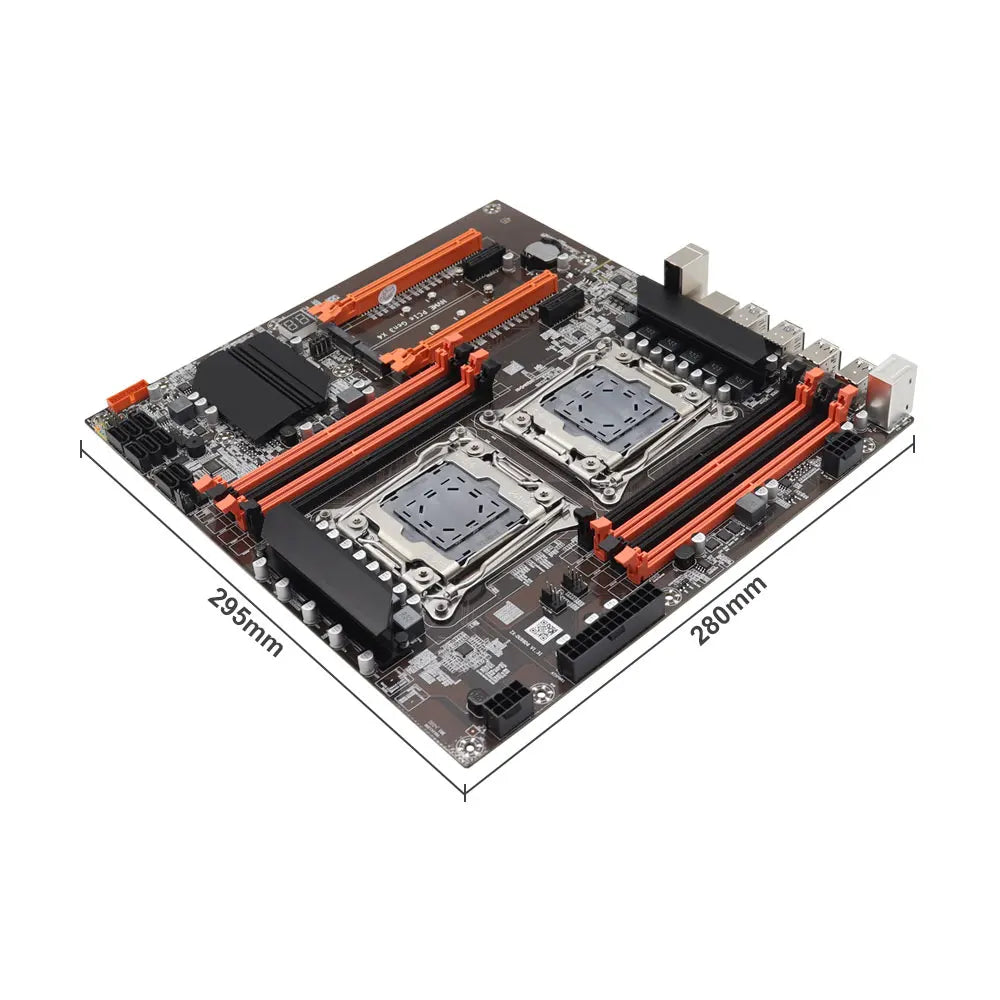

Motherboard Size: Approx. 281 x 295mm / 11.06 x 11.61in

Package List:

1 x Motherboard

1 x Iron plate

1 x PIN Cable

Note:

The battery needs to be installed for the motherboard to work.
